Computer Architecture 2025fall Project 1

Nowadays, gem5 has been the most popular simulation framework used by computer architecture research community. This project will cover the tutorial of building up a computer system framework by using gem5 simulator. We will study how different CPU types and main memory systems can impact the whole performance of computer system. Please note that gem5 simulation usually takes a long time. So you need to start the project as early as possible.

For your convenience, we have tried to minimize the hassles of setting up gem5, but still, it is somewhat tricky. Whenever you face the trouble or problem on this project, please refer to gem5 documentation or contact TAs by WeChat or e-mail. All the following information have been verified on Ubuntu 20.04.1 with Linux Kernel 5.15.0 and Ubuntu 22.04.2 LTS with the Linux Kernel 5.19.0.

Setup: Install Toolchain and Compile gem5

Install environment

As a complicated software, gem5 requires several prerequisites to run properly. However, manually preparing the correct environment is very challenging. For your convenience, we provide a Docker image with correctly installed prerequisites. To use the image, you first need to install Docker. On Windows system, you can easily install it by installing Docker Desktop; on Linux system, you can install Docker following the documentation. You can use the following command to check your installation:

docker --version

# You'll see contents like the following:
Docker version 24.0.2, build cb74dfc

wsl --version

docker pull chaselab/archlab

docker load -i archlab-image.tar

After pull (load) the image, you can find it by running the following command:

docker images

# you'll see contents like the following:
REPOSITORY         TAG           IMAGE ID       CREATED        SIZE
chaselab/archlab   latest        c028b12a3ac4   1 second ago   1.8GB

sudo apt-get update; sudo apt-get upgrade
# For Ubuntu 20.04
sudo apt install build-essential git m4 scons zlib1g zlib1g-dev libprotobuf-dev protobuf-compiler libprotoc-dev libgoogle-perftools-dev python3-dev python-is-python3 libboost-all-dev pkg-config

# For Ubuntu 18.04
sudo apt install build-essential git m4 scons zlib1g zlib1g-dev libprotobuf-dev protobuf-compiler libprotoc-dev libgoogle-perftools-dev python3-dev python libboost-all-dev pkg-config

After preparing the environment, you should clone the codes of gem5. We have provided a skeleton code which you can clone from its repo, or download the code package from PKU Disk and then extract the codes to a directory.

git config --global core.autocrlf false

Once you have the codes, you are able to compile gem5. If you are using Docker (if not you can skip this part), you need to firstly create a container to setup the environment. Also, you need to mount the code onto the container when you start it, so that you can read and modify the code files inside the container. The command is as follows:

docker run -it --name <container name> -v <local path>:<container path> chaselab/archlab /bin/bash

• The -it option means to attach stdin, stdout and stderr to current terminal, so you can operate the container interactively.
• The --name <container name> option specifies the name of the new container. It may be useful when you try to run other commands on the container, but it is rather optional, because you can always specify a container by its individual ID. You can see the IDs and names of all existing containers with this command:

  docker ps -a

  # you'll see contents like the following:
  CONTAINER ID   IMAGE                  COMMAND       CREATED          STATUS                      PORTS     NAMES
  43518d84eb29   chaselab/archlab       "/bin/bash"   14 seconds ago   Exited (0) 14 seconds ago             lab1


• The -v <local path>:<container path> allows you to mount a local directory to a directory in the container. Here, you need to specify the local path as the path to your gem5 code, for example, C:\Users\myname\gem5. The container path can be simple, for example, /gem5. When you enter the container, you can see all the codes under container path. Please note that this option only accepts absolute paths, otherwise the contents in the directory will not be correctly mounted.
• The first argument after the options is the image name, here is chaselab/archlab.
• The second argument is the command you want to run upon container start. Here we use /bin/bash to start an interactive terminal.

Thus, filling up all the options and arguments makes the command look like this:

docker run -it --name lab1 -v C:\Users\myname\gem5:/gem5 chaselab/archlab /bin/bash

Compile gem5

Once the container has started, or if you have manually prepared the environment, you can proceed to compile gem5. Please note that gem5 must be built on a Unix platform (e.g., Linux and MacOS). gem5 uses SCons to manage its compilation. In this lab, we'll compile for ARM ISA:

cd gem5
scons build/ARM/gem5.opt -j $(nproc) # use all your cores to compile

You're missing the pre-commit/commit-msg hooks. These hook help to ensure your
code follows gem5's style rules on git commit and your commit messages follow
our commit message requirements. This script will now install these hooks in
your .git/hooks/ directory.
Press enter to continue, or ctrl-c to abort:
 Cannot find 'pre-commit'. Please ensure all Python requirements are
installed. This can be done via 'pip install -r requirements.txt'.
It is strongly recommended you install the pre-commit hooks before working with gem5. Do you want to continue compilation (y/n)?

Building gem5 may take you more than 30 minutes on your PC. If it completes successfully, you will see the following results:

 [     CXX] ARM/base/date.cc -> .o
 [    LINK]  -> ARM/gem5.opt
scons: done building targets.

You now have a binary in the directory build/ARM called gem5.opt.

Part 1: Create and Run a Simple Configuration Script

gem5 simulator is built from a collection of Python objects, SimObject. In this part, you need to set up a simple configuration script to describe the SimObject to be instantiated, their parameters, and their relationships. Following the instructions in this part, you are able to model a simple computer system, including a simple CPU core, a single DDR4 memory channel, and a system-wide memory bus connecting CPU core and memory channel.

Let’s get started by creating a new configuration file:

mkdir configs/proj1
touch configs/proj1/simple.py

This configuration file is a normal Python file. Therefore, you can use any legal grammar or available libraries in Python.

The first thing we should write in the script is to import the class definitions from the m5 modules and all SimObject as follows:

import m5
from m5.objects import *

In gem5, to simplify the description of large systems, the overall simulation specification is organized as a tree. Each node in the tree is a SimObject instance. The program must create a special object root of class Root to identify the root of the tree hierarchy. When parsing the configuration program, the tree hierarchy is walked recursively to identify the objects from the root to its descendants. We will create the first object which is the Root and specify its parameters in the “m5 main process”:

if __name__ == '__m5_main__':
    root = Root()
    root.full_system = False
    root.system = System()

gem5 provides two simulation modes: system call emulation (SE) mode and full system (FS) mode. In FS mode, Gem5 can simulate a complete system with devices and an operating system, while in SE mode, only essential system services are provided by simulator to execute workloads. In our projects, we will use SE mode for faster simulation (root.full_system = False). The above codes also instantiate class System. It is the parent of all the other objects in the simulated system, and contains a lot of functional information, such as the physical memory ranges, the root clock domain, the root voltage domain, etc.

root = Root(full_system = False, system = System())

Now that a reference to the system for the simulation has been created, let’s build a simple but complete system. The first thing is to set the clock on the system. We first need to create the clock domain, which is an instance of class SrcCLockDomain. Clock domain contains multiple parameters such as clock (clock frequency), voltage domain (voltage), etc. Each parameter has its default value defined in the python class. We can also manually set the values in the configuration script as follows:

def init_system(system):
    system.clk_domain = SrcClockDomain(clock='4GHz', voltage_domain=VoltageDomain())

Once the clock domain is set up, we can move to create the memory and the memory controller. We need to configure the memory simulation mode and memory range. Since we make configurations for normal simulation, we are going to select timing mode for the memory simulation, which can be applied in most conditions. In other simulation conditions such as restoring memory system from a checkpoint, you may select atomic mode.

Then, we will also set up a single memory range of size 2GB and assign it to the system. We should also get instances of memory controller (MemCtrl) and memory device from various memory device classes such as DDR4 DRAM (DDR4_2400_8x8), HMC (HMC_2500_x32), etc. All available memory devices classes are listed in src/mem/DRAMInterface.py. Last, we assign the memory device with the memory range.

system.mem_mode = 'timing'
system.mem_ranges = [AddrRange ('2GB')]
system.mem_ctrl = MemCtrl()
system.mem_ctrl.dram = DDR4_2400_8x8()
system.mem_ctrl.dram.range = root.system.mem_ranges[0]

So far, we have almost completed memory setup. Now, we can create a CPU. gem5 provides various types of CPU such as SimpleCPU (simplified CPU timing model), MinorCPU (in-order CPU), O3CPU (out-of-order CPU), etc. As an example, we choose simple timing-based CPU in Gem5, TimingSimpleCPU. This CPU model executes each instruction in a single clock cycle, except for memory requests, which flow through the memory. You can instantiate the object in the system:

system.cpu = TimingSimpleCPU()

Next, we need to create a system bus to connect between the CPU and memory controller. The command to instantiate memory bus is as follows:

system.membus = SystemXBar()

Now that we have created the system bus, the next step is to describe the interconnect logic which actually connect the CPU to the memory. For CPU, we need to connect the ICache and DCache ports to the system bus (currently we do not include any cache in the CPU). For memory, we need to connect memory controller port to the system bus. In addition, we need to create an interrupt controller on the CPU and connect a system port to the memory bus. This port is a functional-only port to allow the system to read/write memory:

system.cpu.icache_port = system.membus.cpu_side_ports
system.cpu.dcache_port = system.membus.cpu_side_ports
system.mem_ctrl.port = system.membus.mem_side_ports
system.cpu.createInterruptController()
system.system_port = system.membus.cpu_side_ports
# system.cpu.interrupts[0].pio = system.membus.mem_side_ports
# system.cpu.interrupts[0].int_requestor = system.membus.cpu_side_ports
# system.cpu.interrupts[0].int_responder = system.membus.mem_side_ports

system.cpu.connectBus(system.membus)
system.mem_ctrl.port = system.membus.mem_side_ports
system.cpu.createInterruptController()
system.system_port = system.membus.cpu_side_ports

So far, we have finished the configuration of simulated system. Next, we will set up the program to be executed. gem5 allows you to specify any application built for ARM ISA and that’s been statically compiled. In this script, we will execute a simple “Hello World” program. You can compile the code with make in tests/labexe, or download the pre-built binaries from PKU Disk.

cd tests/labexe
make

sudo apt install gcc-arm-linux-gnueabihf

To inform gem5 to execute our program, we first need to set system workload to the executable. Then we create a process and set the process command to the workload we want to run. This is a list structure with the executable in the first field and the arguments passed to the executable in the rest of the list. Then we configure the CPU to execute the process and finally create the functional execution contexts in the CPU:

import os
def init_process(root):
    exe_path = 'tests/labexe/hello'
    root.system.workload = SEWorkload.init_compatible(exe_path)
    process = Process()
    process.executable = exe_path
    process.cwd = os.getcwd()
    process.cmd = [exe_path]
    root.system.cpu.workload = process
    root.system.cpu.createThreads()

Finally, we need to instantiate the object hierarchy by calling instantiate() function. Once the object hierarchy has been instantiated, the actual simulation can begin. The simulate() function invokes the C++ event loop. By default, this function will simulate forever, or until some other factor causes the simulation loop to exit (such as the CPU has been shutdown). If a positive integer argument is passed to the simulate function, it will simulate at most that number of additional ticks, but may exit sooner if another cause arises first. In any case, the simulate() function will return an event object that represents the reason for exiting. The object can be queried via its getCause() method for a string explaining that reason. Let’s return to m5 main process, initialize the system and process, then start the simulation:

if __name__ == '__m5_main__':
    root = Root()
    root.full_system = False
    root.system = System()
    # new codes:
    init_system(root.system)
    init_process(root)
    m5.instantiate()
    exit_event = m5.simulate()
    print(f'{exit_event.getCause()} ({exit_event.getCode()}) @ {m5.curTick()}')

Now, we have created a simple but complete simulation script, we are ready to run gem5:

build/ARM/gem5.opt configs/proj1/simple.py

If everything goes fine, you'll see contents like follows:

...
Hello, World!
exiting with last active thread context (0) @ 14307750

Part 2: Understand gem5 Statistics and Output

After gem5 simulation completes, by default there are three files generated in directory m5out:

• config.ini: contains a list of SimObject and the values of their parameters for simulation.
• config.json: same with config.ini, but in json format.
• stats.txt: detailed statistics generated from gem5 simulation. Specifically, it contains general information about the execution, which is shown as follows:

---------- Begin Simulation Statistics ----------
simSeconds                    5.148973        # Number of seconds simulated (Second)
simTicks                 5148973163000        # Number of ticks simulated (Tick)
...

It contains three columns: left lists the statistics names, middle column lists the values, and the right column shows the explanation. In this project, simSeconds and simInsts are important. You can calculate your simulated computer system performance (instructions per second) by simInsts / simSeconds. You also can find out system.cpu.numCycles and calculate IPC (instruction per cycle) by simInsts / system.cpu.numCycles. Each SimObject in the simulated system will print its own statistics. You can use any finding approach (e.g., grep) to check specific statistics, like the statistics of system.cpu.

build/ARM/gem5.opt -d another-dir configs/proj1/simple.py
build/ARM/gem5.opt --outdir=another-dir configs/proj1/simple.py

Part 3: Add Options in the Configuration Script

In this project, you are required to explore different CPU and memory configurations for different workloads. However, it is cumbersome to edit your configuration script every time you want to test the system with different parameters. To smoothly solve this issue, you can add command-line parameters to your configuration scripts. Since the configuration script is a Python script, it can use Python libraries that support argument parsing (e.g., argparse). Adding options to configuration script requires several steps. After importing argparse, you need to specify the arguments in m5 main process:

import argparse
if __name__ == "__m5_main__":
    parser = argparse.ArgumentParser()
    parser.add_argument(
        "commands_to_run",
        nargs="*",
        help="Command(s) to run",
    )
    parser.add_argument(
        "--cpu",
        type=str,
        choices=list(cpu_types.keys()),
        default="simple",
        help="CPU model to use",
    )
    parser.add_argument(
        "--mem",
        type=str,
        choices=list(mem_types.keys()),
        default="DDR4",
        help="type of memory to use",
    )
    parser.add_argument(
        "--clock",
        type=str,
        default="4GHz"
    )
    args = parser.parse_args()
    ...

build/ARM/gem5.opt configs/proj1/simple.py --help

# you'll see contents like the following:
...
usage: simple.py [-h] [--cpu CPU] [--mem MEM] [--clock CLOCK] [commands_to_run [commands_to_run ...]]
...

You may notice that we have specified the choices in --cpu and --mem, which is a Python list that can specify the available choices. We've also defined cpu_types and mem_types and used their keys() as the choices. This is a convenient way to simplify the arugments used in commands. We can transform the argument short strings to detailed SimObject names with them. gem5 provides various alternative CPU and memory models alongside TimingSimpleCPU and DDR4 memory, such as O3CPU (out-of-order), MinorCPU (in-order), DDR5 memory. We can use these models as choices. Example defines are as follows:

cpu_types = {
    "simple": TimingSimpleCPU,
    "minor": MinorCPU,
    "o3": O3CPU,
}
mem_types = {
    "DDR3": DDR3_1600_8x8,
    "DDR4": DDR4_2400_8x8,
    "DDR5": DDR5_8400_4x8,
}

Next, we need to pass the CPU type option and memory type option to the system. We can modify the init_system() function by following codes:

# DELETE: def init_system(system):
def init_system(system, args):
    ...
    # DELETE: system.mem_ctrl.dram = DDR4_2400_8x8()
    system.mem_ctrl.dram = mem_types[args.mem]()
    # DELETE: system.cpu = TimingSimpleCPU()
    system.cpu = cpu_types[args.cpu]()
    ...

We've also set the clock speed (--clock) option in codes above, and we can also pass it to the system:

# DELETE: system.clk_domain = SrcClockDomain(clock='4GHz', voltage_domain=VoltageDomain())
system.clk_domain = SrcClockDomain(clock=args.clock, voltage_domain=VoltageDomain())

Finally, we can pass the first positional argument command_to_run to the process, which allows us to specify executables other than simply hello:

# DELETE: def init_process(root):
def init_process(root, args):
    # DELETE: exe_path = 'tests/labexe/hello'
    exe_path = args.commands_to_run[0]
    root.system.workload = SEWorkload.init_compatible(exe_path)
    process = Process()
    process.executable = exe_path
    precess.cwd = os.getcwd()
    # DELETE: process.cmd = [exe_path]
    process.cmd = args.commands_to_run
    root.system.cpu.workload = process
    root.system.cpu.createThreads()

Now, we have completed the modification to our configuration script, we can run the script like follows:

build/ARM/gem5.opt configs/proj1/simple.py tests/labexe/gemm --cpu minor --mem DDR5 --clock 2GHz

#!/bin/bash

# examples
cpus=("c1" "c2")
mems=("m1" "m2")
exes=("shell_sort" "gemm" "spfa" "binary_search")

for c in ${cpus[@]}; do
for m in ${mems[@]}; do
for e in ${exes[@]}; do
    # set output dir, name it however you like
    build/ARM/gem5.opt -d $e$c$m \
    configs/proj1/simple.py tests/labexe/$e \
    --cpu $c --mem $m &
    # add `&` after the command to let it run in background
done
done
done

Submission

Appendix: VSCode and Docker Working Together on Windows

First, you need to install Docker and Visual Studio Code and ensure they are functioning properly.

Install the Dev Containers plugin

• Open Visual Studio Code
• click the Extensions icon in the left sidebar
• Search for “Dev Containers” in the search bar at the top of the Extensions list that appears
• select the desired extension from the search results and click the Install button on the opened page

Connecting to a container using VS Code

• Launch the container using the method described earlier (refer to setup)
• Launch VS Code, then click the green “Open a Remote Window” button in the bottom-left corner
• Then it will display a list of currently running containers at the top. Select the container you want to enter and click on it

Appendix: Log in to the server account provided to you using Visual Studio Code

Create configuration command

If you have applied to the teaching assistant for a server account, we will typically return two commands similar to those shown below, along with their corresponding passwords.

ssh -p <port1> jzlab@<IP>
ssh -p <port2> root@127.0.0.1

Based on these two commands, we need to assemble a new string in the following format:

Host <your favourite name>
	Hostname 127.0.0.1
	User root
	Port <port2>
	ProxyJump jzlab@<IP>:<port1>

For example, if the command you receive is

ssh -p 11451 jzlab@114.514.114.514
ssh -p 14514 root@127.0.0.1

Then you can obtain the string

Host helloworld
	Hostname 127.0.0.1
	User root
	Port 14514
	ProxyJump jzlab@114.514.114.514:11451

Install Visual Studio Code

Visit the official Visual Studio Code website, where you will find the download button readily available. Please ensure you download the appropriate version for your operating system.

Then open the installation package you have downloaded and follow the step-by-step instructions to complete the installation.

Install the remote-ssh plugin

Once you've downloaded Visual Studio Code, you'll need to install the SSH-related extensions. First, open your Visual Studio Code. Then locate the extensions icon in the left-hand sidebar. Upon clicking the icon, an expanded list and a search box appeared. Enter “remote-SSH” in the search box to locate the corresponding plugin.Finally, select the corresponding result and click “Install”.

Add configuration command

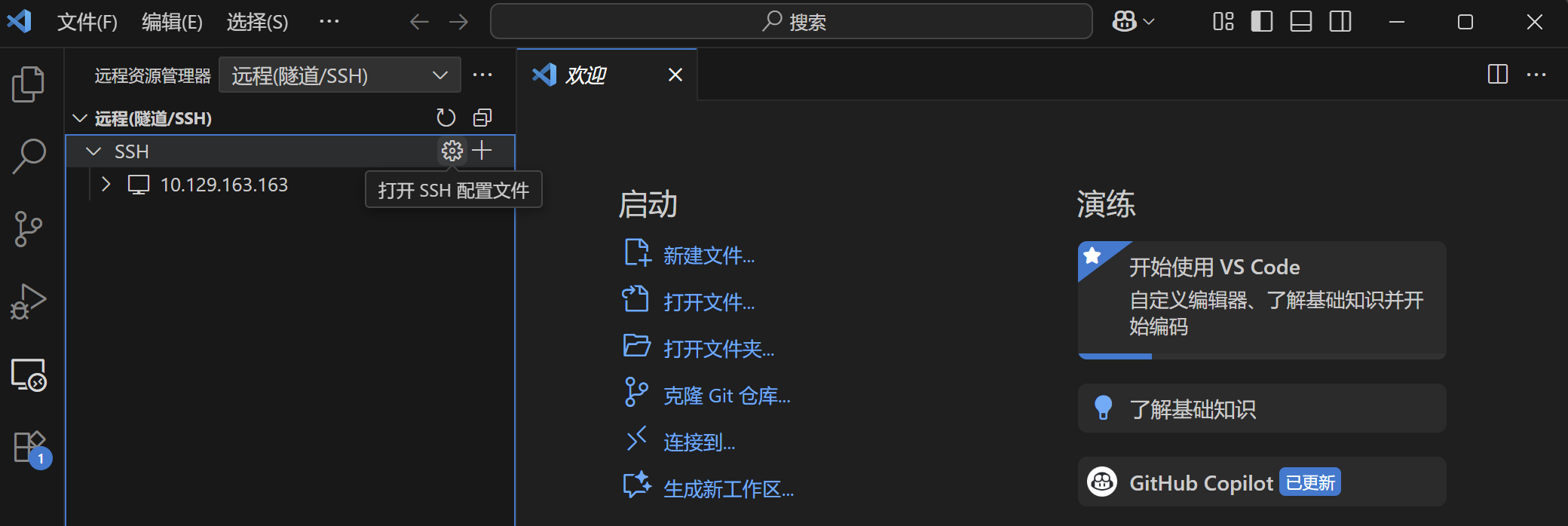

Upon installing the Remote-SSH extension, a new icon resembling a monitor symbol appears in the left-hand pane of VS Code, labelled Remote Explorer. Clicking this icon displays all SSH connections previously accessed through VS Code. When you hover your mouse over the SSH folder, you will notice a gear icon appearing to the right of SSH.

Clicking this gear icon will prompt you to select a configuration file. Simply choose the default option, and you will then open the SSH configuration file.

Next, paste the newly acquired configuration command onto the last newly created line, maintaining its formatting.

Finally, remember to save!

Start your journey

When you wish to connect to your server account, open Visual Studio Code and click the green or blue square in the bottom-left corner, which represents the creation of a new remote connection. A list will then appear at the top; select “Connect to Host”. You will then notice “helloworld” (or your select name) appearing in this list. Click on it to initiate the SSH connection. Please note you will need to enter your password twice: once for ssh -p <port1> jzlab@<IP> and once for ssh -p <port2> root@127.0.0.1. If all proceeds smoothly, you will enter the VSCode workspace and can now try this lab.

Appendix: Common Questions

Here are some common questions that we collected on Part 1, especially for installing environment and compiling gem5:

Pull image issue

If you failed to pull the Docker image with docker pull, it is probably because the Docker Hub is blocked currently. Try to use VPN or download the image from our PKU Disk.

Warning about pre-commit

If you run scons to compile and are warned with Cannot find 'pre-commit' (messages like the following), you can ignore the message. This is only required for contributing to gem5 and will not prevent the compilation.

You're missing the pre-commit/commit-msg hooks. These hook help to ensure your
code follows gem5's style rules on git commit and your commit messages follow
our commit message requirements. This script will now install these hooks in
your .git/hooks/ directory.
Press enter to continue, or ctrl-c to abort:
 Cannot find 'pre-commit'. Please ensure all Python requirements are
installed. This can be done via 'pip install -r requirements.txt'.
It is strongly recommended you install the pre-commit hooks before working with gem5. Do you want to continue compilation (y/n)?

Format issue (\r) with git and Windows

If you use Docker Desktop on a Windows system, you may meet a file format issue during compilation, especially when you clone the codes under Windows using git. git will automatically replace \n (LF) with \r\n (CRLF) for you. SCons may report the occurance of \r (or ^M) and throw an error. Here's three possible solutions:

• Disable the auto replacement by git config --global core.autocrlf false, and clone (re-clone) the codes.
• Use dos2unix under your container (you need to firstly install it using apt) to transform \r\n to \n. The command referring to this blog can be

  find . -type f -print0 | xargs -0 dos2unix


• Clone the codes inside container. Be careful, you will lose your codes when you remove the container if you choose this solution.

Run out of memory (SCons killed) issue

If you fail to compile and SCons reports message like the following, you are probably running out of memory:

collect2: fatal error: ld terminated with signal 9 [Killed]
# ... or
g++: fatal error: Killed signal terminated program cc1plus

As reference values, with 8 compile jobs (-j 8), the compilation and the link process ([LINK] -> build/ARM/gem5.opt) may both take up to 12GB memory. If your PC's physical memory is equal to or less than 16GB, you may probably meet this issue.

If you face this trouble, you can manually enlarge the swap space used by Docker container. On Windows, you need to firstly change the backend to WSL2 (installation method can be found in official doc). The setting process is like the following:

Next, stop Docker Desktop, and stop WSL by wsl --shutdown. Then, create a file named .wslconfig under C:\Users\Yourname, and write the following configs:

[wsl2]
memory=4GB
swap=32GB
autoMemoryReclaim=gradual

You can adjust the memory and swap values based on your PC's physical memory and disk space limits. WSL2 uses up to 50% of your physical memory by default. According to the memory usage values described above, the swap is recommended to be larger than 20GB. Set autoMemoryReclaim=gradual to save your physical memory when you are not running WSL or containers.

Lastly, start WSL, Docker Desktop and your container again. You can also start a new container by restricting its memory and swap limits:

docker run -it --memory 4G --memory-swap 20G -v ...

Remember to use the same <container path> in -v, otherwise compilation may fail. Or you can delete build/ and re-compile completely.

Use docker on server

If you still cannot compile or cannot setup WSL and Docker Desktop, feel free to contact TA for a server account. However, please note:

• You DO NOT need to pull the image again. Just use ssh to log in your container and clone code and all operations requiring storage space within the ~/workspace directory.
• We recommend using Visual Studio Code to log into the container assigned to you. As the login process involves SSH jump server principles, we advise you to consult relevant tutorials.
• DO NOT MALICIOUSLY ENTER OTHER STUDENTS' CONTAINERS OR MODIFY THEIR CODES!
